Texas Speed & Performance

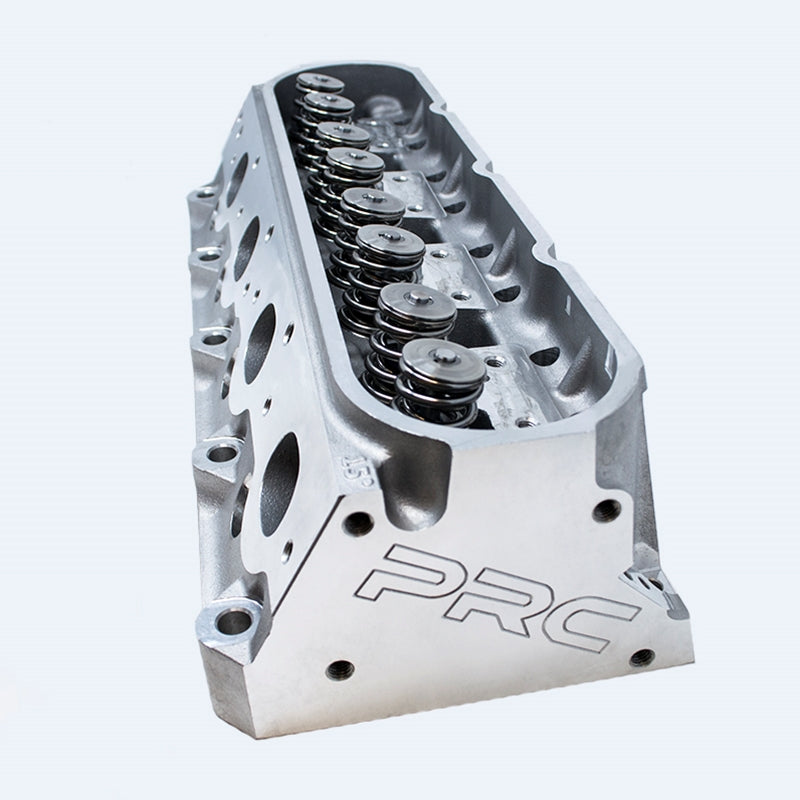

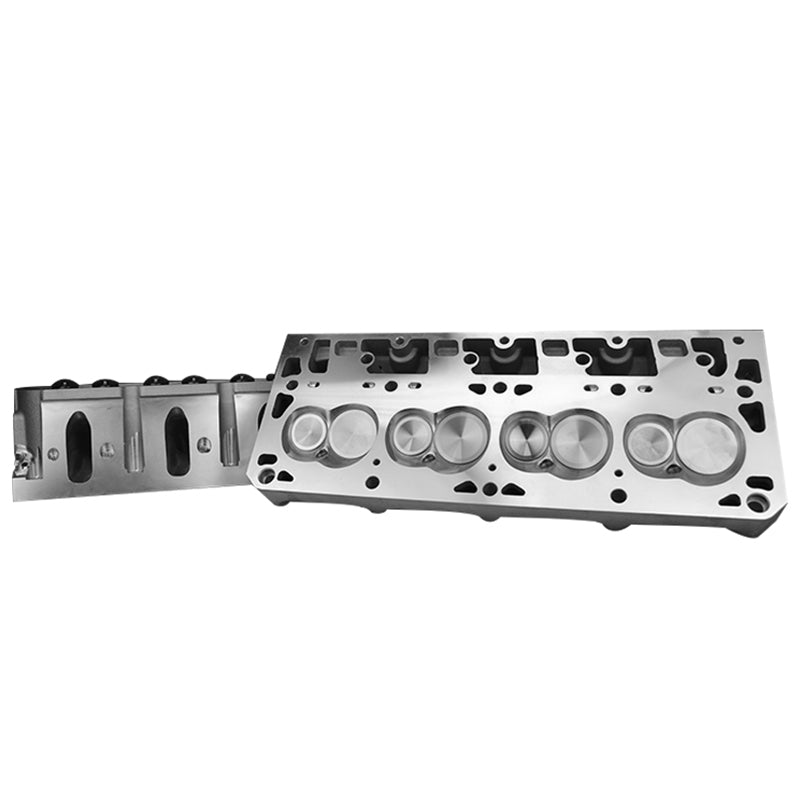

PRC 15-Degree 220cc As-Cast 64cc Chamber Cathedral Heads 4.8/5.3 LS

PRC 15-Degree 220cc As-Cast 64cc Chamber Cathedral Heads 4.8/5.3 LS

Regular price $2,100.00 USD
Regular price Sale price $2,100.00 USD
Sale Sold out
Shipping calculated at checkout.

Precision Race Components all new cylinder head castings completed with 220cc runners. For stock cubic inch 4.8/5.3/LS1/LS2 applications requiring a stock valve angle LS cylinder head with extra thick decks comparable to stock piston to valve.

Features:

  • 220cc Intake Runners
  • 84cc Exhaust Runners
  • Designed as a bolt on cylinder head with minimal change to pushrod length
  • TSP .660 Spring Kit w/ PAC Valve Springs & Titanium Retainers
  • 64cc CNC Machined Chambers
  • CHE Bronze Guides
  • 2.045" Stainless Intake Valves/ 1.600" Stainless Exhaust Valves
  • Factory Rocker Friendly!!*
  • Extra Thick Deck Surfaces For Power Adders

The all new 220cc cylinder head is finally available for customers looking for a bolt on 15 degree LS cathedral cylinder head.  Think of this cylinder head as the ultimate 15 degree LS1/LS2 cylinder heads for guys wanting a stronger replacement to the LS1 / LS6 / LS2 factory casting.  The perfect head for guys wanting a aftermarket casting  that will retain the use of all there existing components.

Flow Data:

4.00" Flow Plate - No Exhaust Pipe



LIFT INTAKE FLOW  EXHAUST FLOW
 .100"   67 CFM  55   CFM
 .200"    145 CFM  113 CFM
 .300"    207 CFM  166 CFM
 .400"    252 CFM  200 CFM
 .500"    292 CFM  215 CFM
 .600"    304 CFM  226 CFM
 .650"    311 CFM  228 CFM
