Holley EFI LS Hi-Ram Intake Manifold 300-117
Holley EFI LS Hi-Ram Intake Manifold 300-117
Regular price
$1,199.99 USD
Regular price
Sale price
$1,199.99 USD
Unit price
/
per

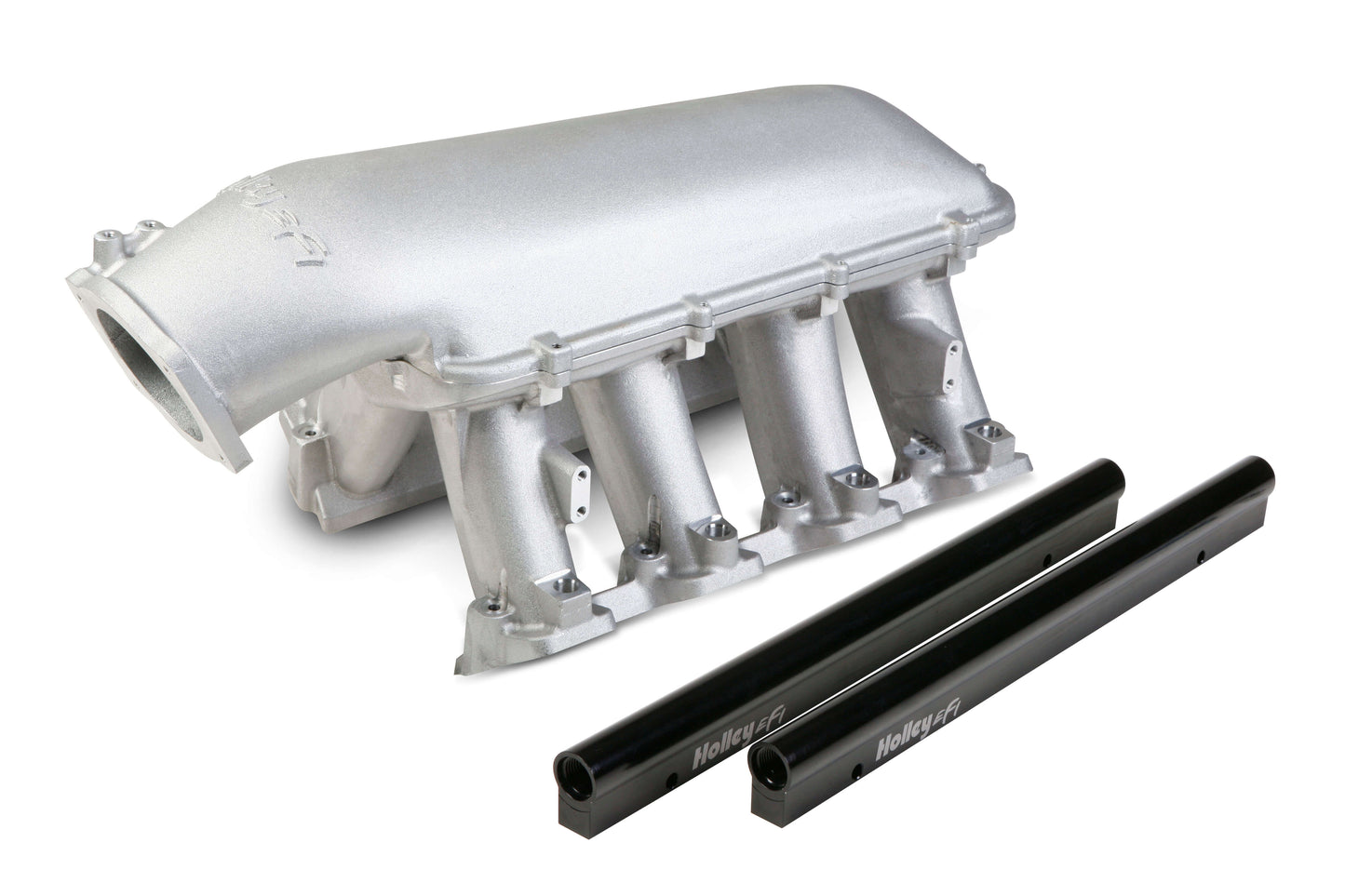

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. Features: Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block. Total Height with 92/105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block. Port Size – 2.49” Height x 1.21” Wide Mounting Flange Gasket Type – Standard LS3 Molded O-Ring Plenum Top Gasket Type – 3/32” Round O-ring Cord Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical) Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in² Manifold has provisions for (1) 3/8 NPT and (2) 1/8 NPT fittings..
