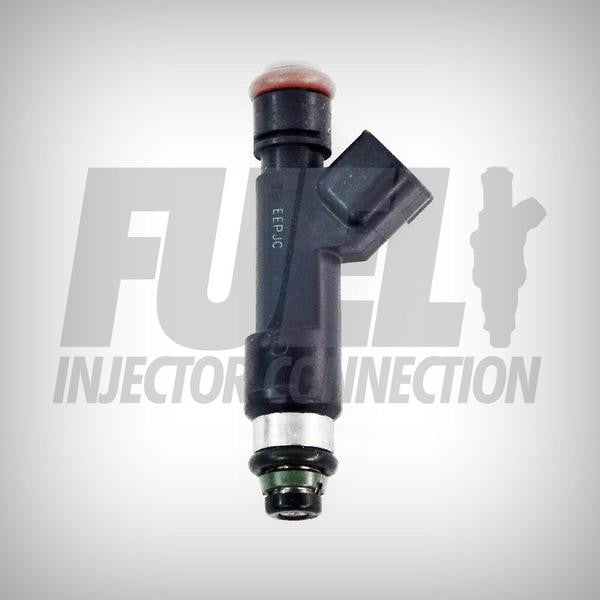

FIC 2000 CC Denso

Injectors are sold Individually

RATED FOR ALL-FUEL TYPES, HIGH IMPEDANCE - MATCHED SET

fitment for over 300 different applications in stock!

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol tends to "dry" the orifices. Customers should be made aware that this can be a problem with some fuel injectors. And may cause a "sticking" problem. It is suggested that a tank of 91-98 octane gasoline be run to every 5 or 6 tanks of Ethanol to re-lube not only the fuel injectors, but the entire fuel component system. This is also considered to be good maintenance, but not essential, for stainless steel based fuel injectors.

Electrical connector type: U.S. CAR

O-ring to o-ring length 60mm

Top and bottom o rings are for the application you select.

Flow rate: 2000cc/min @ 3 Bar (43.5PSI)

Part Number: FIC2000D

**Please note, these are 60mm tall and will direct fit in LS1/LS6. All other applications will need custom rail spacing.
