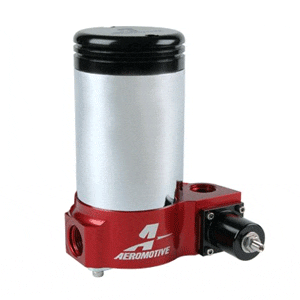

Aeromotive A2000 Fuel Pump

Fuel Pump, Electric, A2000 Drag Race, External, Gas/Alcohol, Universal, Each

These Aeromotive fuel pumps deliver 350 gph of fuel at free flow--enough for engines between 500 and 2,000 hp. They use a diaphragm-controlled regulator for even, reliable flow without sudden pressure spikes. The results are more consistent ETs and better overall performance. Compatible with gasoline and alcohol, the pumps feature a diaphragm bypass, -10 AN inlet and outlet ports, a -8 AN return port, a 1/8 in. NPT gauge port, and a proprietary shaft seal design.

Brand:  Aeromotive
Part Type:  Fuel Pumps, Electric External
Product Line:  Aeromotive A2000 Drag Racing Fuel Pumps
Free Flow Rate:  350 gph
Maximum Pressure (psi):  30 psi
Inlet Size:  -10 AN
Inlet Quantity:  One
Inlet Attachment:  Female threads
Outlet Size:  -10 AN
Outlet Quantity:  One
Outlet Attachment:  Female threads
Quantity:  Sold individually.
Notes:  Has integrated bypass regulator with -8 AN return port.
